Description:

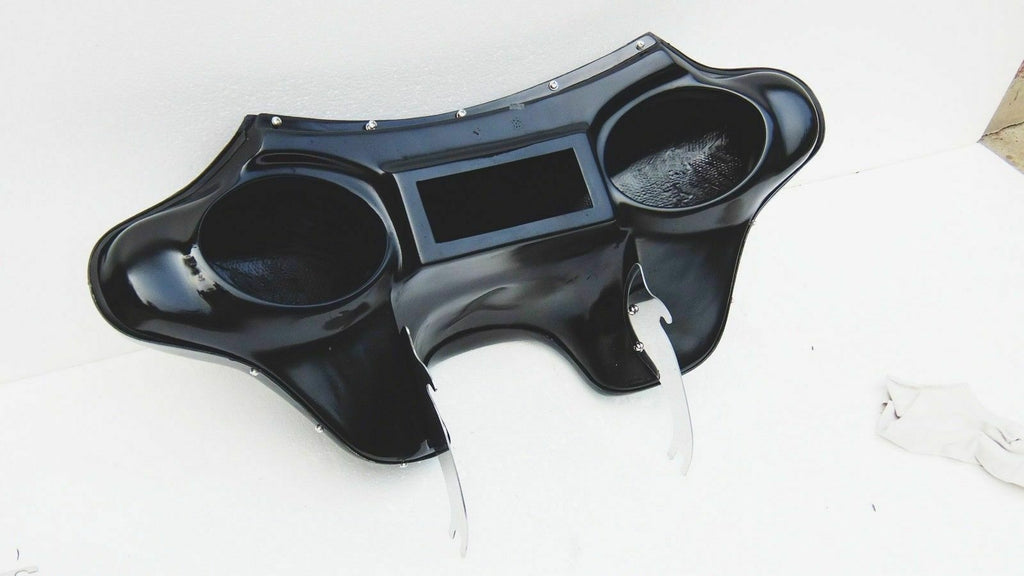

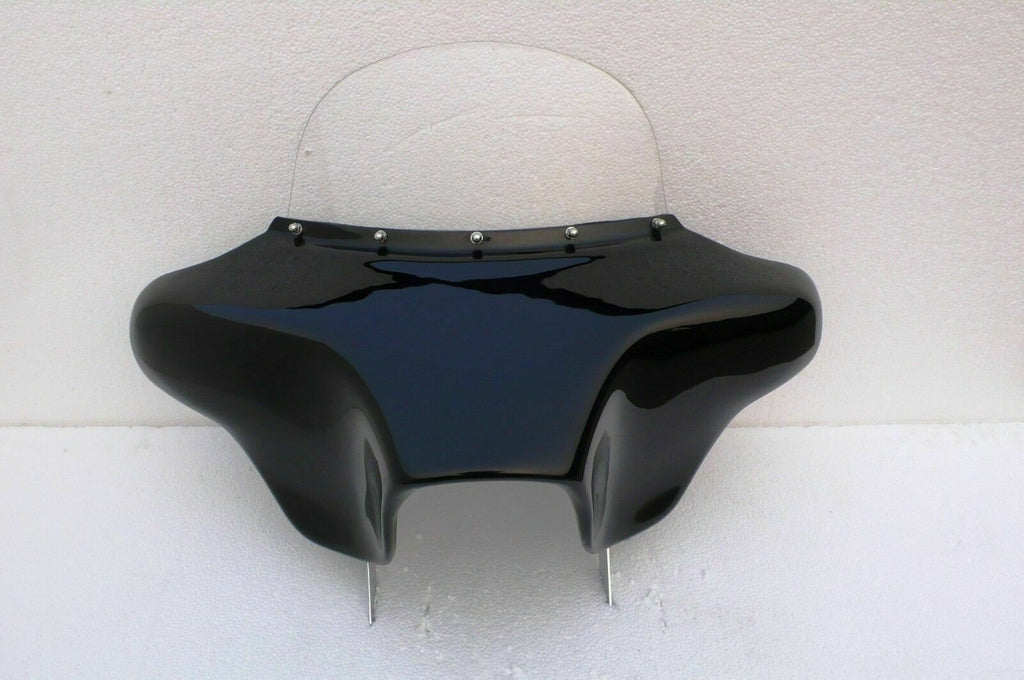

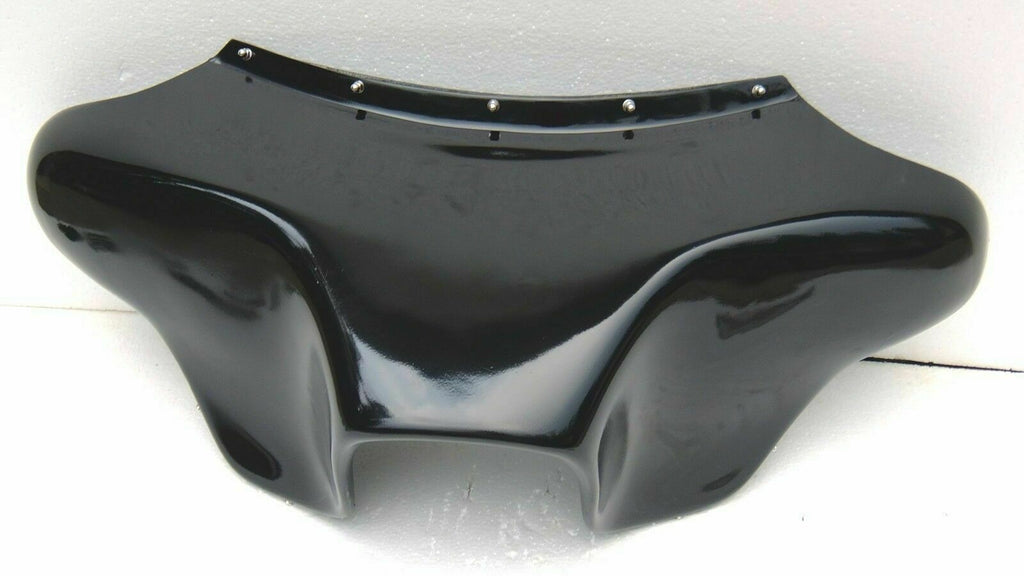

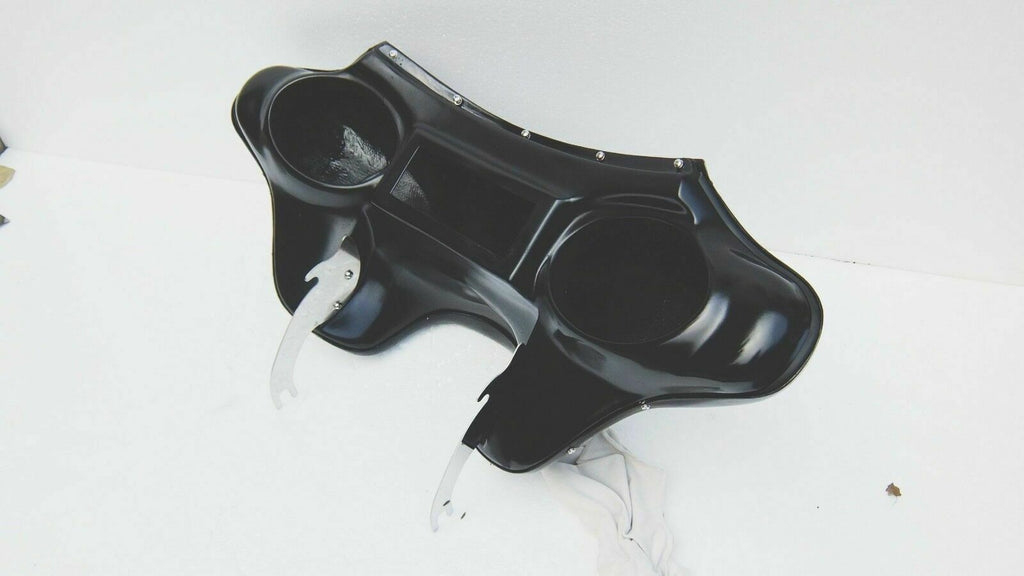

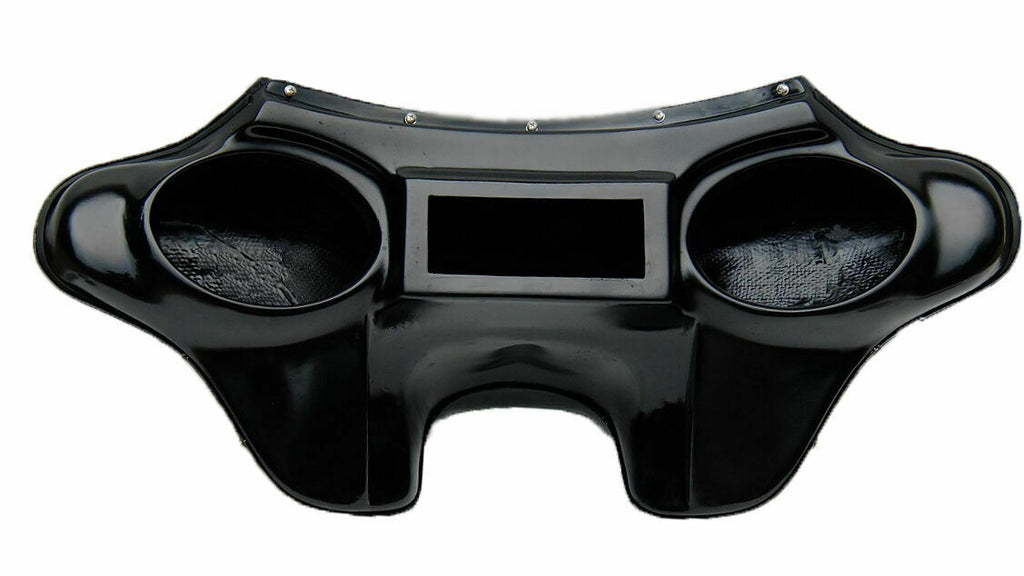

Hand laid fiberglass fairing lighter but stronger
Included brackets work with existing Road King OEM mounting brackets HD # 68712-94A
Designed to accommodate HD Road King 1994 to present and FLHTC Electra Glide Classic
Comes with both inner and outer pieces
Mounting brackets are included (OEM 68712-94A brackets are not included)
Standard 10 inches clear windshield is included
Stereo mounting opening is precut as 8"x3"
Stereo and marine stereo mounting cover are not included
You will need to take off the grille of the 6x9 speaker and mount speaker behind the precut speaker holes from the inner fairing. The speaker will need to be covered with speaker cloth for a clean look.
Windshield height 10 "
Dimensions: 39” L x 10” W x 18” H
Stereo mounting opening: 8" x 3"
Distance between mounting brackets: 13 3/4 "
Headlight cutout diameter：8 1/2"
Speaker dimension: 8 1/2’’ L x 5 5/8’’ H 3 1/8’’ Deep
Note：
The brackets AND fairing are designed to fit the widest possible range of bikes. Please measure your bike against the specs of this fairing before ordering. Given so many years and models it tries to cover it may require modifications to fit perfectly.
Please note in some instances, you may be required to drill new bracket mounting holes in the fairing, use washers as shims or even purchase additional aftermarket mounting brackets
It will be easier to mount the brackets first on your bike then secure the inner fairing position to brackets, then fasten the outer fairing to adjust the positions.
They are not paint, it is recommended to repaint with color matching your bike for best result. Paint prep is needed to achieve best finish.
Distance between mounting brackets: 13 3/4", please measure your bike make sure it will fit. Some year and models require wider distance and this one may not fit.
The stereo opening is precut as 8x3" to fit Seaworthy type of marine stereo cover. You will need this type marine stereo cover that have an inner housing to hold the stereo.
You will need to take off the grille of the 6x9 speaker and mount speaker behind the precut speaker holes from the inner fairing. The speaker will need to be covered with speaker cloth for a clean look.
All kits are sold as unfinished products, prep-work (i.e. sanding, cutting, filling, body work and primer) and painting is required for the best finished look.
Items come in gray primer. Professional shop with body kit installation experience recommended.
